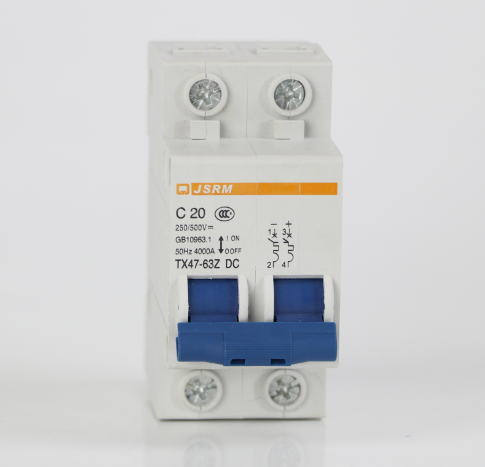

小型直流斷路器DZ47-63Z/2P

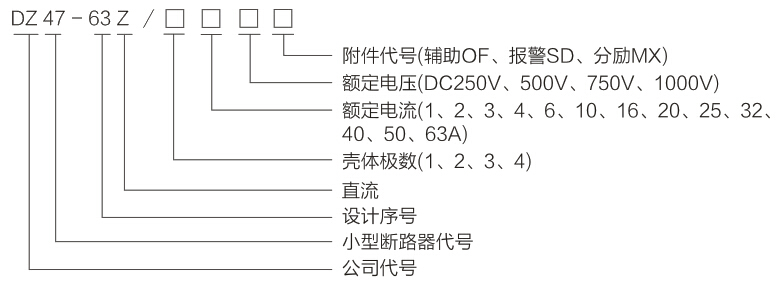

DZ47-63Z小型直流斷路器用于直流電壓至500V,額定電流至63A線路起過載和短路保護之用,也可以作為線路的不頻繁操作轉換之用。 小型直流斷路器適用于通訊、光伏系統等直流系統應用場合。 產品符合: GB 14048.2、IEC 60947-2標準 型號及含義

DZ47-63Z/2P小型直流斷路器規格參數
小型直流斷路器 DZ47-63Z/2P 1A DC500V
小型直流斷路器 DZ47-63Z/2P 2A DC500V 小型直流斷路器 DZ47-63Z/2P 3A DC500V 小型直流斷路器 DZ47-63Z/2P 4A DC500V 小型直流斷路器 DZ47-63Z/2P 6A DC500V 小型直流斷路器 DZ47-63Z/2P 10A DC500V 小型直流斷路器 DZ47-63Z/2P 16A DC500V 小型直流斷路器 DZ47-63Z/2P 20A DC500V 小型直流斷路器 DZ47-63Z/2P 25A DC500V 小型直流斷路器 DZ47-63Z/2P 32A DC500V 小型直流斷路器 DZ47-63Z/2P 40A DC500V 小型直流斷路器 DZ47-63Z/2P 50A DC500V 小型直流斷路器 DZ47-63Z/2P 63A DC500V
訂貨須知 產品型號和名稱,DZ47-63Z小型直流斷路器; 瞬時脫扣型式和額定電流,如C20; 額定電壓,如DC500V; 訂貨數量,如500臺; 訂貨舉例:DZ47-63Z/2P 20A DC500V 500臺
|
